PR Express Panel PWM Solisto SOL-40-NC
Assembled control panel for stand-alone uses. If in stock ships 1-3 days, backordered ships 2-3 weeks.
From: $462.34
Part Number: 230353
Features
- 40 amp, 12v or 24v charge controller
- Charge controller rated for 25% overload for 5 min
- USB port on the side with a 5VDC 1A output
- RS232 Communication port using RJ12 socket with Modbus protocol
- Autodetect of 12V/24V system voltage.
- PWM: Pulse Width Modulation pulse charging
- Includes LVD protection and battery temperature compensation
- Built-In charging programs for Sealed, Gel, Flooded, and Lithium batteries
Product Data
Product in Stock
PR Express Panel PWM Solisto SOL-40-NC
Sunwize power-ready express control panels are prewired aluminum panels, designed for stand-alone PV systems.
This control panel has all of the necessary switchgear to hook up the charge/load controller to a solar array, battery bank, and load.
Charge Controller supports 12V or 24v batteries.

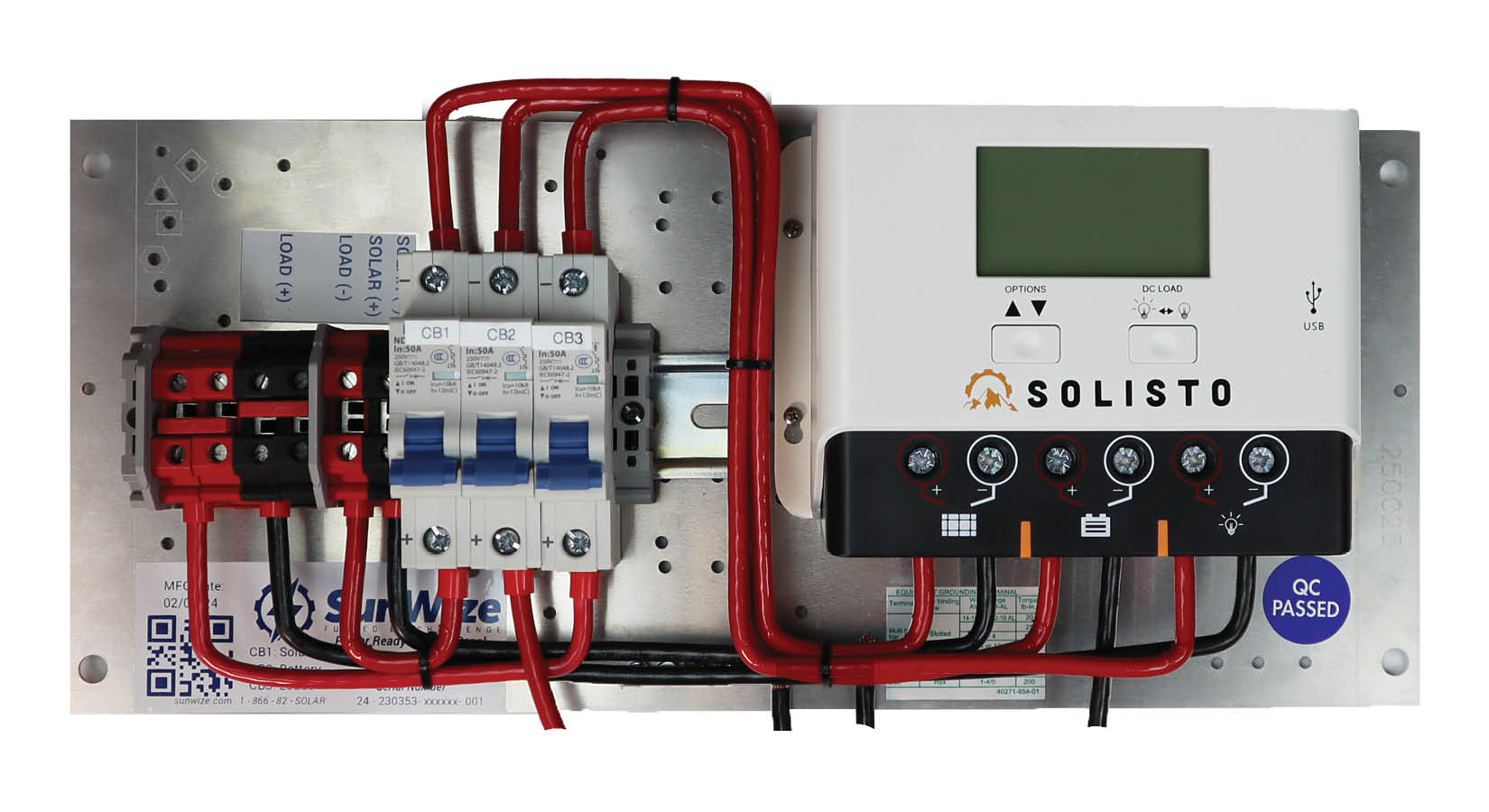

The control panel consists of an aluminum backplate; a charge controller; two load terminals; and breakers for the array, battery, and load. All breakers are sized to match the rating of the charge controller.
