SunWize T-4X8D Enclosure

Premium series, NEMA3R, powder-coated, 4-battery, top-opening enclosure

F-Series

From: $1,667.27

Part Number: 004140

Features

  • 20.5″H × 48.3″W × 23.8″D
  • Ground mounted
  • Two rear 1/2” electrical knockouts
  • NEMA3R aluminum, powder-coated finish
  • Pad-lockable Top Opening Lid
  • Truck Freight Item
Not sure if this enclosure is the right one for you? Use our Battery Enclosure Selection Tool Here to be certain!

SunWize Enclosure Backplate Options

Equipment Tray Options

Insufficient stock

PRE Panel Options

Product in Stock

SunWize T-4X8D Enclosure

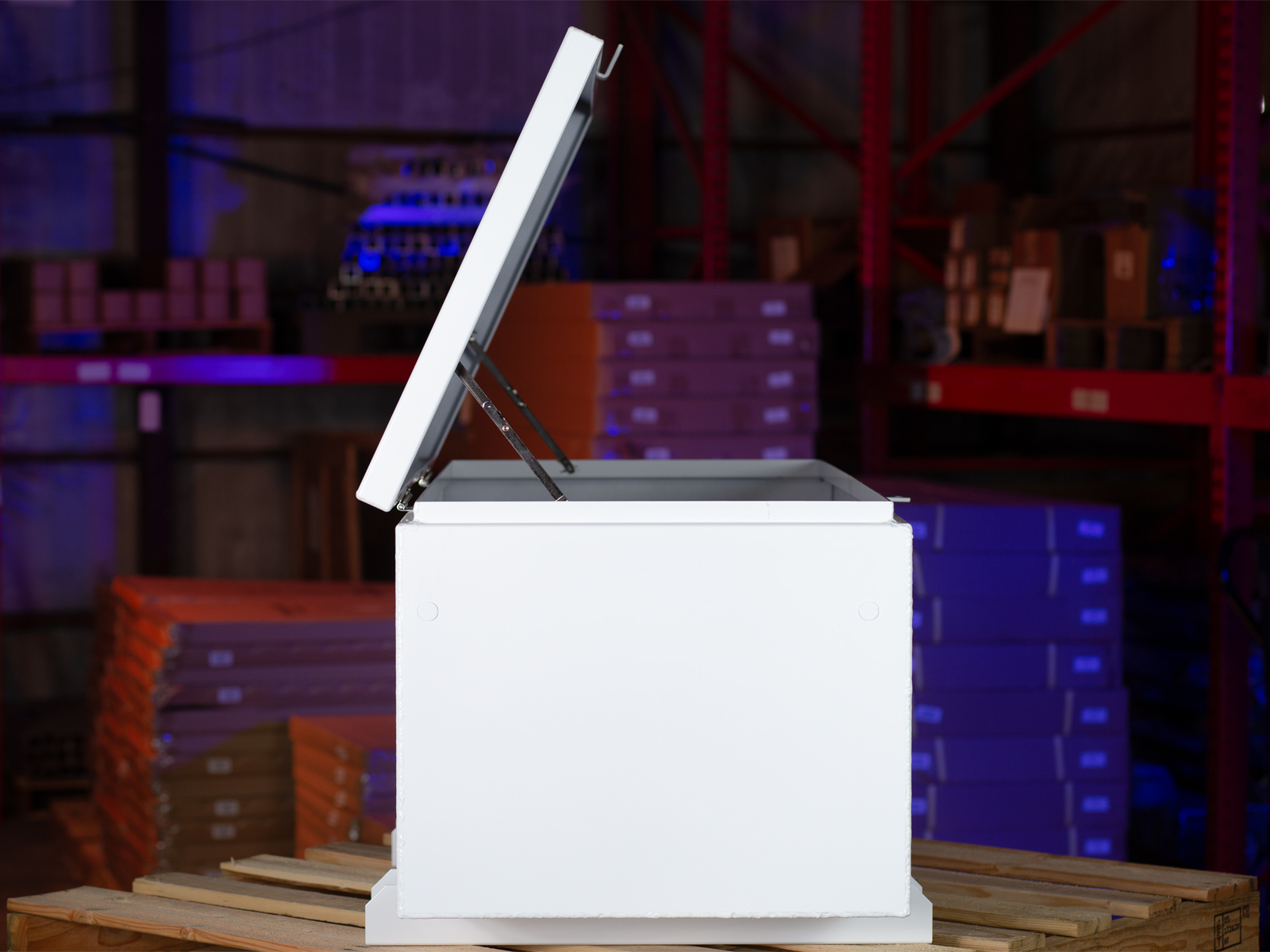

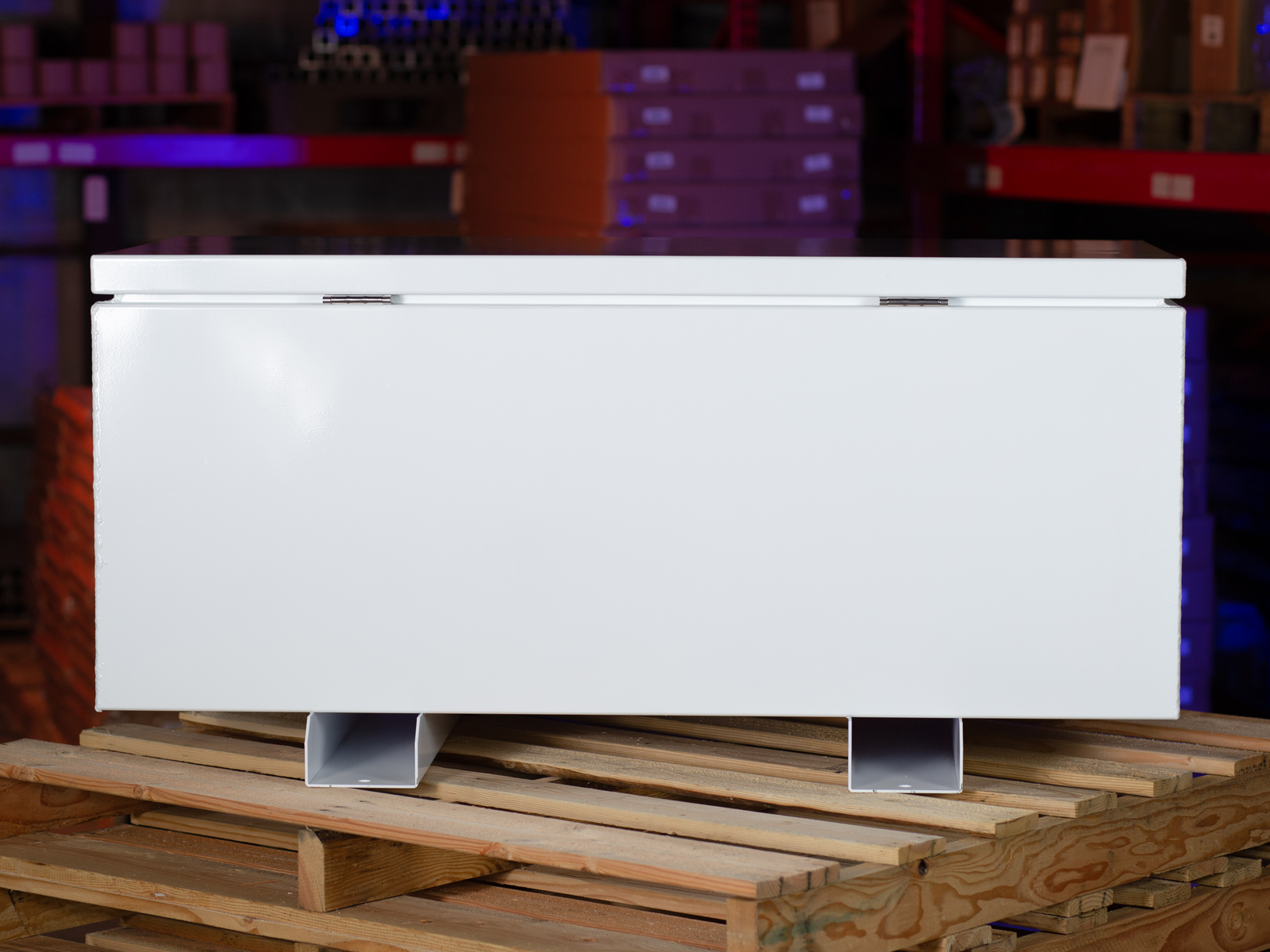

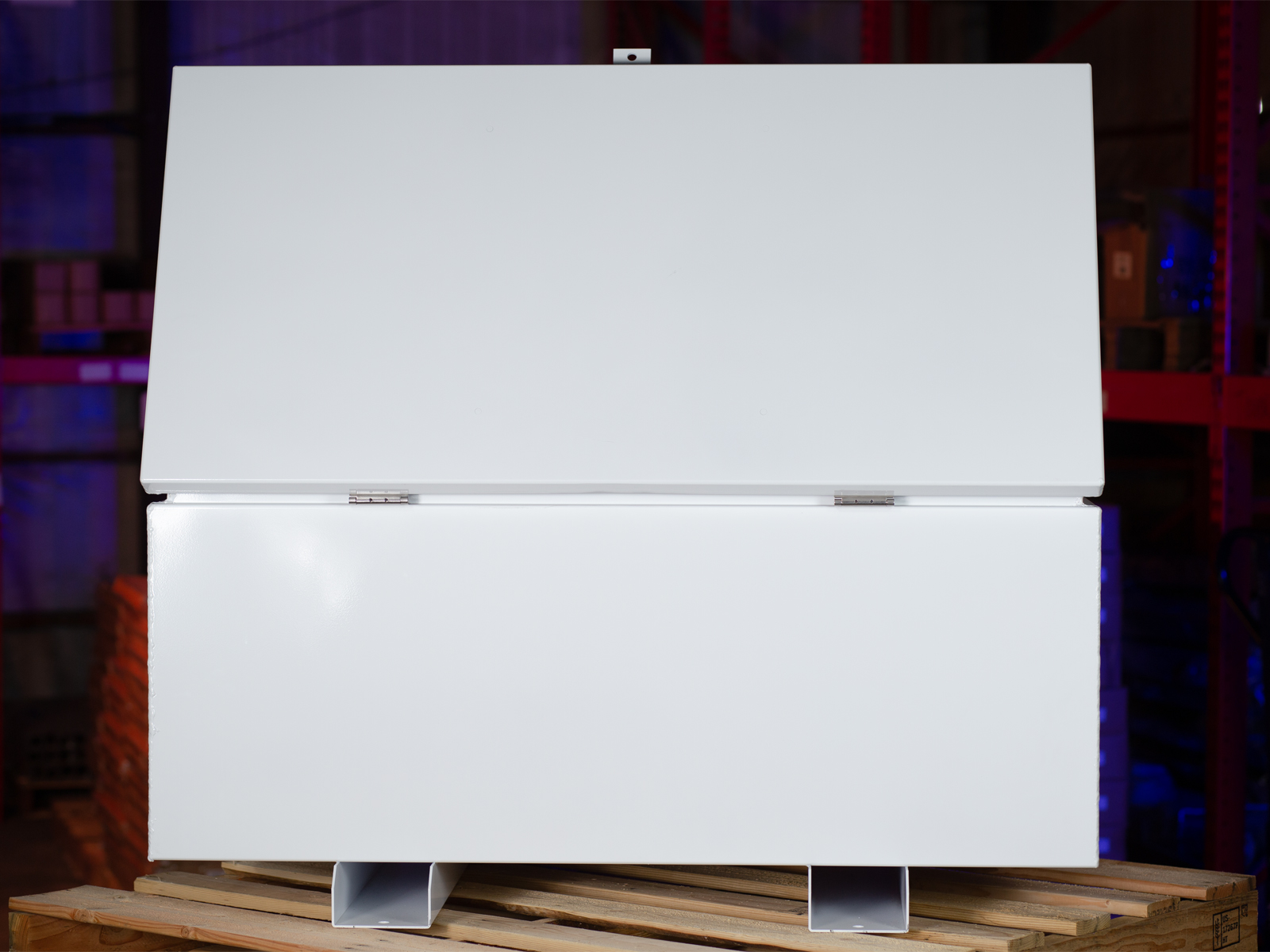

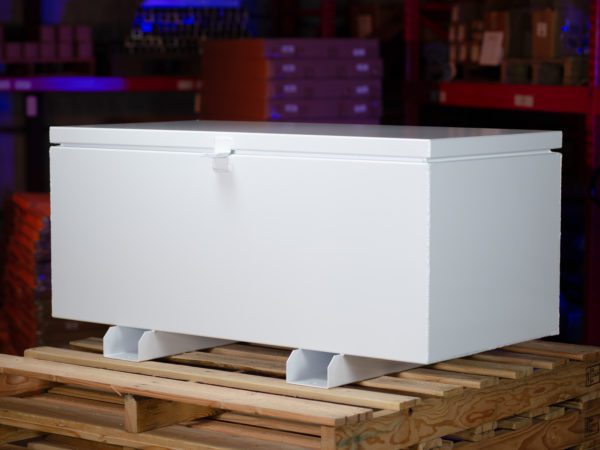

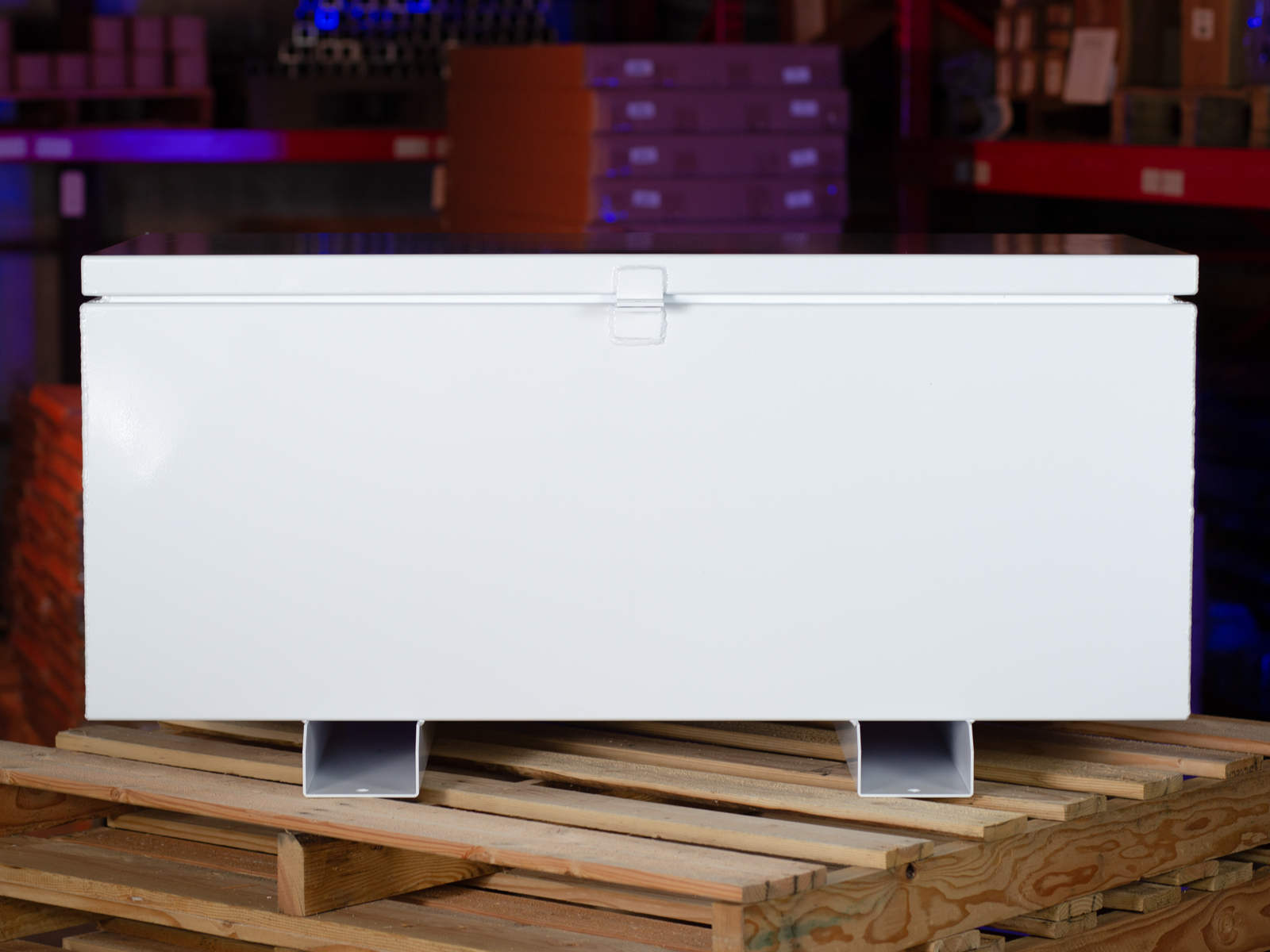

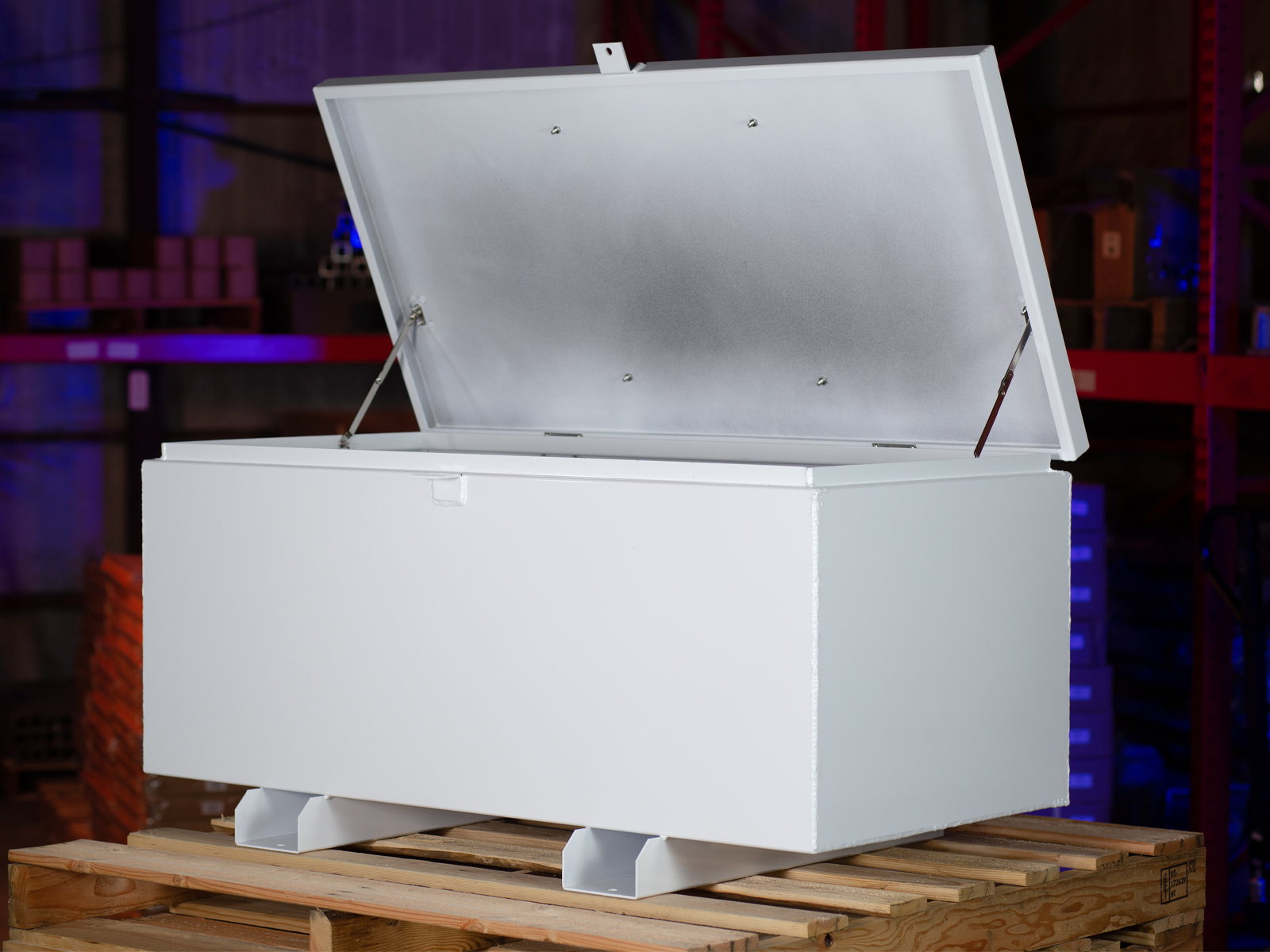

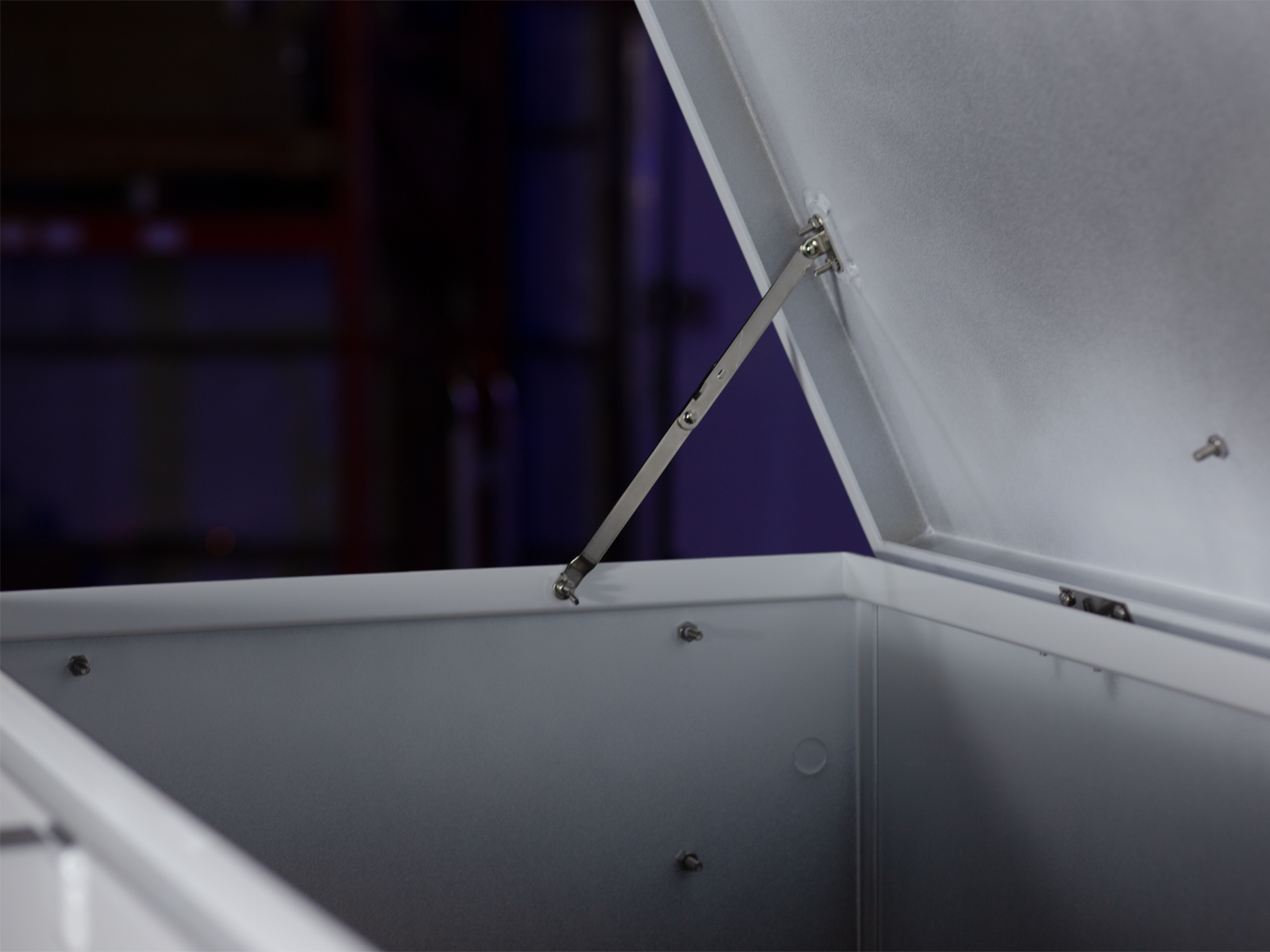

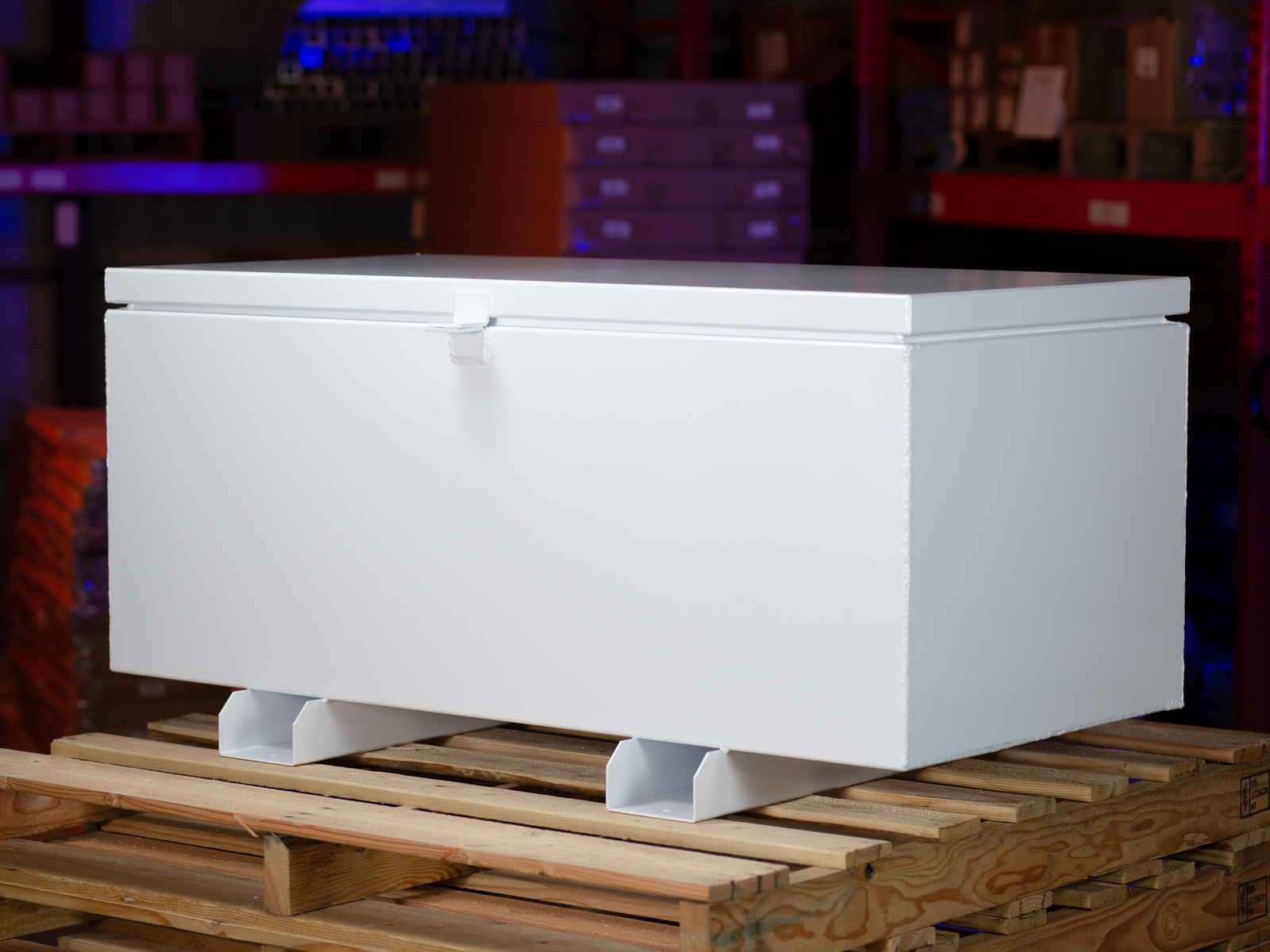

The SunWize Power & Battery T-4X8D battery enclosure is NEMA3R rated, contains white powder-coated finish, and features hinged, pad-lockable lids. The locking hinge allows for easy servicing of equipment. The T-4X8D comes with elevated skid feet and (2) left-side ½” electrical knockouts. It is ideal for industrial and remote solar applications.

All T-series enclosures are compatible with our universal backplates and Power Ready Express Control Panels. Each enclosure can hold a variety of battery configurations. All battery quantities and sizes leave additional space for your control equipment. See our Enclosure Catalog for full details.

More about SunWize Power & Battery enclosures

Sunwize Power & Battery Battery Enclosures are available in various sizes and configurations for housing batteries and support equipment, engineered specifically for the PV industry but suitable in a wide variety of applications.

Most of our enclosures are designed to NEMA3R and rated for outdoor use. White powder coating and quality manufacturing ensure a robust enclosure that will survive even the harshest conditions. Sunwize Power & Battery also offers custom enclosures to meet any specification.

All Enclosures include rainproof design, electrical knockout, and ventilation.

  • M Series Enclosures are pole-mounted enclosures featuring new battery storage capabilities and a hammered powder coat finish.
  • F Series Enclosures are cost-effective solutions for housing one to four batteries with supporting equipment.
  • T Series Enclosures are ground mounted aluminum or steel chest enclosures, either white powder-coated or mill-finished, and feature hinged, pad-lockable lids.
  • UPS Series Enclosures are targeted for battery backup system applications with two separate enclosures; one for a system’s batteries and one for the electronics.
  • E/C Series Enclosures are Aluminum enclosures feature removable covers with stainless steel screws.
  • WF Series Enclosures accommodate larger back panels for more support equipment, also designed for one to four batteries.
  • Large Power Electronics and Battery Enclosures are front-opening & large enough to accommodate your equipment.

Custom Designed Enclosures are made special order specifically for our customers’ applications, we can design and build a variety of sizes and types of enclosure. Chat with us now to get your custom enclosure started!
